What Is a Fire Block Plan?

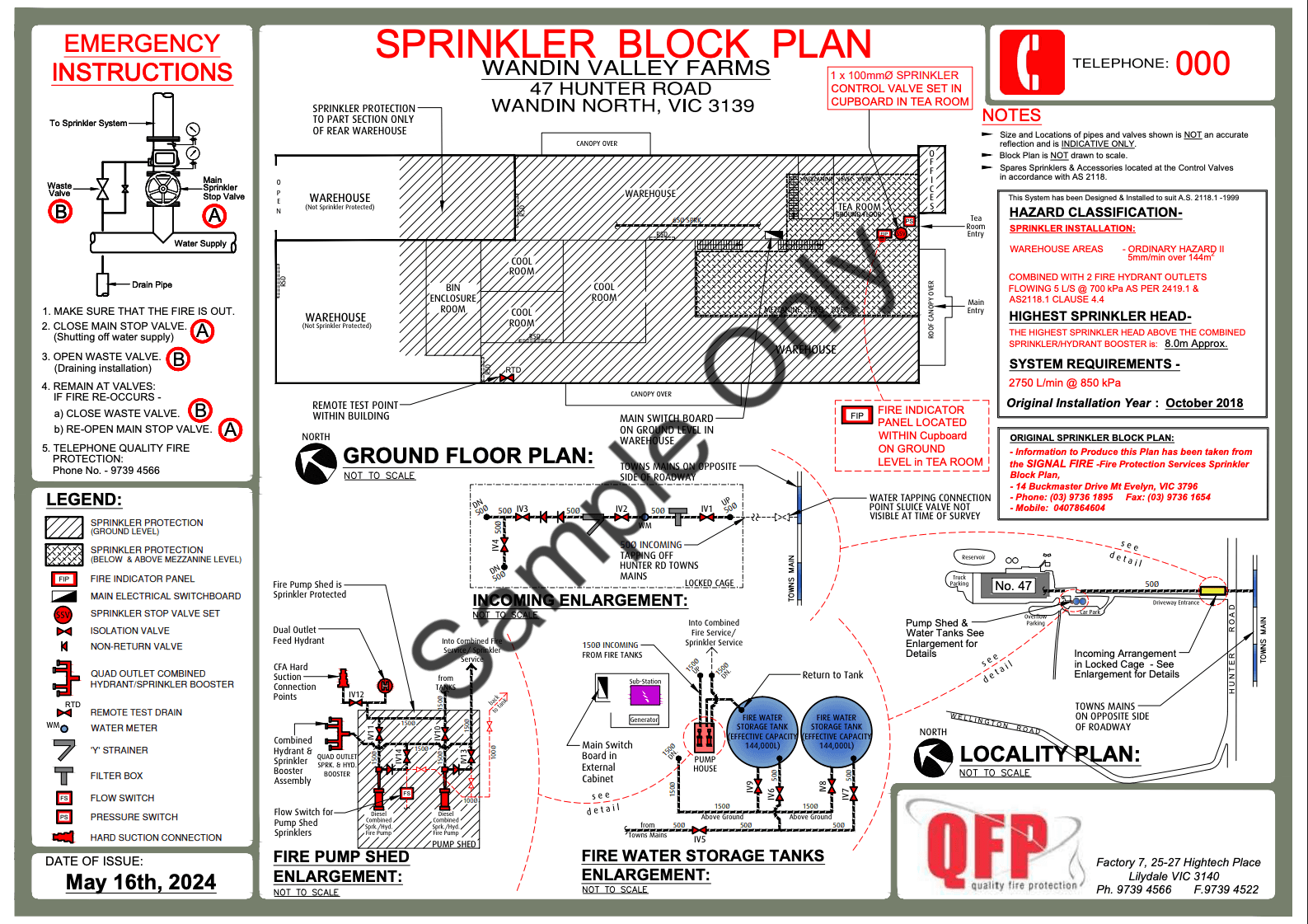

A fire block plan is a schematic diagram that shows the layout of a building's fire protection systems — including fire sprinklers, fire hydrants, fire hose reels, fire alarm systems, emergency warning systems, and evacuation routes. These plans are typically mounted in plant rooms, fire control rooms, and building service areas so that emergency services, building managers, and maintenance personnel can quickly identify and locate key fire safety equipment.
In Australia, block plans are most commonly produced on aluminium plates using an acid etched, paint-filled process — a durable format that withstands the harsh conditions of plant rooms and has a decades-long service life. This is the format that Block Plan has specialised in since 1989.
Why Block Plans Matter on Your Site
1. They Help Emergency Services Respond Faster
When fire brigade crews arrive at a building, they need to locate the fire control panel, hydrant booster, sprinkler zone valves, and other critical equipment immediately. A clear, accurate block plan mounted at the building entrance or in the fire control room gives emergency responders the information they need in seconds — not minutes. In a fire emergency, every second counts.
2. They Are Required for Building Certification
In most Australian states and territories, building occupancy certificates and fire safety certificates cannot be issued without compliant fire system documentation. Builders, developers, and fire protection contractors need block plans in place before handover. Delays in obtaining block plans can hold up practical completion — an expensive outcome on any project.
3. They Support Ongoing Maintenance and Inspections
Facility managers and maintenance contractors rely on block plans during routine fire system testing and maintenance. Without an accurate block plan, technicians cannot quickly identify which zone valve controls which floor, or where hydrant mains run through the building. This slows down maintenance visits and increases the risk of errors.
4. They Protect You From Liability
If a fire occurs at a building that lacks compliant fire system documentation, the building owner, manager, or responsible contractor may face significant legal and insurance consequences. Up-to-date, compliant block plans demonstrate due diligence and can be critical evidence that all required safety measures were in place.
5. They Need to Be Accurate and Up to Date
A block plan that reflects an outdated layout is potentially worse than no block plan at all — it can mislead emergency responders. Any time a fire protection system is modified, extended, or upgraded, the block plan must be updated to reflect those changes. Block Plan offers fast turnaround on updates to existing plans, ensuring your documentation always matches the installed system.
What Types of Block Plans Does Block Plan Produce?
We produce a full range of fire system block plans for Australian commercial, industrial, and residential buildings:
- Fire sprinkler block plans
- Fire hydrant block plans
- Fire alarm and detection block plans
- Emergency evacuation diagrams
- Tactical fire-fighting block plans
- As-built fire system drawings
All plans are produced on durable aluminium with acid etched, paint-filled graphics — the industry standard for longevity and legibility.
How to Order a Block Plan
The process is straightforward. Provide us with your fire system plans in PDF format, and our experienced team will produce accurate and high quality aluminium block plans ready for installation. We supply Australia-wide with fast turnaround times.
